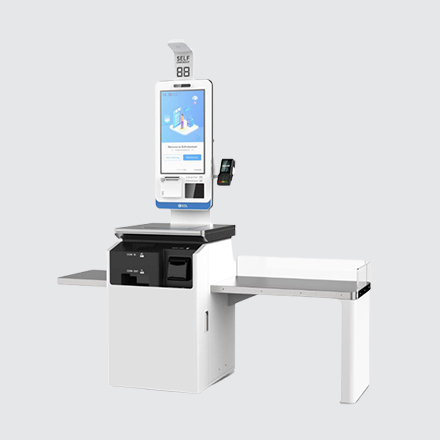

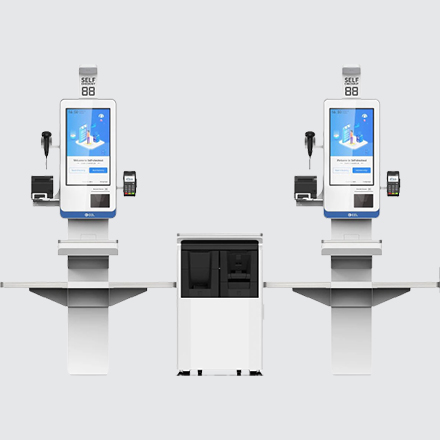

Z2 Self-Checkout Kiosk
CCL Z2 is a self-checkout solution from CCL Tech. This product was designed to provide convenience and efficiency for retailers and customers alike. Incorporating the latest technologies such as computer vision, machine learning, and deep-learning algorithms, CCL Z2 offers accurate product identification, payment acceptance, and receipt printing capabilities.
Display
21.5″ TFT LCD / 27″ TFT
Resolution
1920 x 1080
Touch Screen
Capacitive Ten Point
OS
Android / Windows
CPU
– Z2 Android: Rockchip RK3288, ARM Cortex-A17 Quad core 32-bit, 1.8 GHz / Rockchip RK3399; Dual Cortex-A72+four Cortex-A53, 1.8 GHz
– Z2 Windows: Intel® Celeron J1900, clock speed 2G, Quad-core Intel® Core i3-6100U, dual-core four threads, frequency 2.3 GHz TDP 15W / Intel® core i5-7200U, dual core four threads, frequency 2.5GHz, TDP 15W
Memory
– Z2 Android: LPDDR3 2GB / 4 GB RAM; 16GB, max 12 GB eMMC Storage
– Z2 Windows: DDR3 SO-DIMM slot *1, 4GB, max 16GB RAM; 128GB, max 512GB SATA SSD Storage
Scanner
180° Zebra DS7708 & 360° Zebra DS7000
Printer Type
Thermal Transfer
Print Width
58/80 mm (2.3/3.2 in)
